Turbomachinery Prototypes

Concepts NREC’s manufacturing capabilities extend far beyond simply cutting metal. Our highly skilled machinists are backed by experienced design engineers with diverse technical backgrounds and software engineers who have produced industry-leading CAE and CAM programs. This broad expertise enables us to suggest more efficient manufacturing methods, materials, processes, and designs that meet customer needs while lowering their production costs.

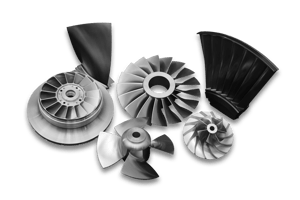

Concepts NREC’s state-of-the-art manufacturing center features 3- and 5-axis milling machines, horizontal and vertical numerical controlled lathes, and high-end inspection equipment. Our specialty is delivering prototypes and short production runs of our clients’ most challenging turbomachinery parts.

partner-bg-img

Capabilities

Concepts NREC’s manufacturing capabilities extend far beyond simply cutting metal. Our highly skilled machinists are backed by experienced design engineers with diverse technical backgrounds and software engineers who have produced industry-leading CAE and CAM programs. This broad expertise enables us to suggest more efficient manufacturing methods, materials, processes, and designs that meet customer needs while lowering their production costs.







Experts in Prototyping Services

Concepts NREC manufacturing services include:

  • Complex prototyping of machined wax patterns for precision investment castings
  • Rapid prototyping of parts in stereolithography
  • Geometric and manufacturing data preparation
  • CNC machining instructions
  • Process drawings and layouts
  • Fixture and tool design
  • Test-rig development
  • Material and process specifications
  • Assembly
  • Inspection data analysis

Agile Products Support (APS)

APS is Concepts NREC’s software maintenance and support program that elevates us from just a software provider to a valued partner.

An APS subscription is included with all annual licenses and is a highly-recommended option for perpetual software licenses. Every software customer is supported for one month following purchase for any installation questions that may arise. Learn more on the Agile Products Support Membership Benefits Datasheet

  • Free software updates
  • One business day response times
  • Expert technical assistance
  • Major discounts on software workshops
  • Discounted professional development course
  • Annual balloting system for development planning
  • Annual Meetings

Manufacturing Brochure

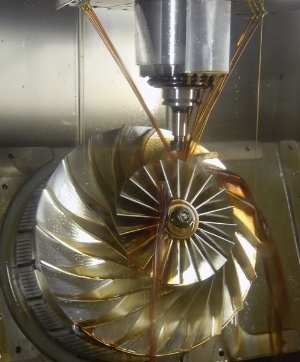

Our specialty is manufacturing prototypes and short production runs of your most challenging turbomachinery parts on our 5-axis CNC machines.

Manufacturing
