Specialized Turbomachinery Products

Turbomachinery Products

In addition to contract manufacturing complete turbomachinery products for you, Concepts NREC manufactures and sells specialized turbomachinery products that serve well-defined niche applications.

partner-bg-img

Add/replace with shop tour video hosted on Youtube

Capabilities

Concepts NREC’s manufacturing capabilities extend far beyond simply cutting metal. Our highly skilled machinists are backed by experienced design engineers with diverse technical backgrounds and software engineers who have produced industry-leading CAE and CAM programs. This broad expertise enables us to suggest more efficient manufacturing methods, materials, processes, and designs that meet customer needs while lowering their production costs.

5-axis machining of blades, blisks, inducers, propellers, impellers, and other turbomachinery parts
Component assembly
Concurrent manufacturing/engineering
Coordinate Measuring Machine (CMM) inspection
Dynamic balancing and modal analysis
Machining complex shrouded (enclosed) impellers for pumps and compressors
Prototypes and shorter production runs
Reverse engineering of obsolete parts








State-of-the-Art Machine Tools and Technologies

Concepts NREC operates a state-of-the-art product center capable of producing the highest-quality, precision-machined turbomachinery components and assemblies. Drawing on extensive experience and expertise with materials, industries, and technologies, Concepts NREC succeeds at complex component challenges that typically have been problematic for others.

This knowledge is supported by the latest manufacturing technologies that, combined, provide Concepts NREC with the credentials to meet the most exacting customer requirements across many industries including aerospace, energy, and industrial processing.

Assembly_NB

EDC Engine-Driven Compressor

This unique engine-driven compressor (EDC) provides pressurized and conditioned cabin air under varying conditions for a specific class of aircraft. The complete EDC was developed and manufactured by Concepts NREC to offer significant advantages over main-engine bleed systems and has been used for several years as a retrofit upgrade for certain turboprop aircraft, enabling them to fly higher and carry a larger payload. The EDC consists of a single-stage centrifugal compressor driven through an integral gearbox and is equipped with variable inlet guide vanes that can modulate both pressure and flow at the same time. The EDC is currently used on turboprop aircraft by taking power off the accessory gearbox, but could also be driven by an electric or hydraulic motor.

DeepChill™ Air Cycle Refrigeration System

Originally developed by Concepts NREC as an aircraft refrigeration system, this environmentally friendly DeepChill™ machine uses air as the refrigerant in place of CFCs or other harmful coolants. In addition to operating with zero CO2 emissions, both the system cycle and hardware are void of any harmful chemicals that might contribute to depletion of the ozone layer. While producing low-temperature air in the range of minus 60°F to minus 120°F, the system offers better efficiency than more traditional refrigeration cycles such as Cascade-, LN2-, and Ammonia-based systems, making air cycle refrigeration well suited and safe for food processing.
air_cycle2000s

EDC Engine-Driven Compressor

This unique engine-driven compressor (EDC) provides pressurized and conditioned cabin air under varying conditions for a specific class of aircraft. The complete EDC was developed and manufactured by Concepts NREC to offer significant advantages over main-engine bleed systems and has been used for several years as a retrofit upgrade for certain turboprop aircraft, enabling them to fly higher and carry a larger payload.

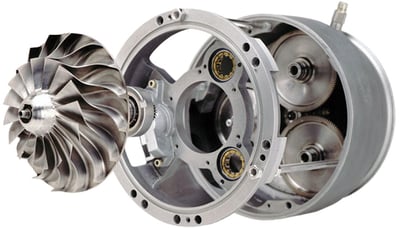

Assembly_NB.jpgThe EDC consists of a single-stage centrifugal compressor driven through an integral gearbox and is equipped with variable inlet guide vanes that can modulate both pressure and flow at the same time. The EDC is currently used on turboprop aircraft by taking power off the accessory gearbox, but could also be driven by an electric or hydraulic motor.

DeepChill™ Air Cycle Refrigeration System

Originally developed by Concepts NREC as an aircraft refrigeration system, this environmentally friendly DeepChill™ machine uses air as the refrigerant in place of CFCs or other harmful coolants. In addition to operating with zero CO2 emissions, both the system cycle and hardware are void of any harmful chemicals that might contribute to depletion of the ozone layer.

air_cycle2000s.jpgWhile producing low-temperature air in the range of minus 60°F to minus 120°F, the system offers better efficiency than more traditional refrigeration cycles such as Cascade-, LN2-, and Ammonia-based systems, making air cycle refrigeration well suited and safe for food processing.

What We Offer

Capabilities

  • Simultaneous 5-Axis up to 39 in (99.06 cm) diameter
  • Turning up to 39 in (99.06 cm) diameter
  • CMM Inspection with Zeiss Blade Pro for in-depth dimensional analysis of turbine blades
  • Assembly & Testing

Services

  • Heat Treat
  • Wire/Sinker EDM
  • Spline/V-tooth/Drive Pins/Polygon
  • Grinding
  • Abradable Coating
  • Brazing
  • Polishing
  • Shot Peening
  • Paint
  • Passivation
  • Electroplating
  • Welding
  • Dynamic Balancing
  • Overspeed Testing
  • Liquid Penetrant Testing
  • Ultrasonic Testing
  • Laser Scanning
  • Additive Manufacturing

Materials

  • Aluminum
  • Stainless Steel
  • Inconel
  • Titanium

Part Types

  • Pump Impellers (open & integrally shrouded)
  • Compressor impellers (open & integrally shrouded)
  • Turbines rotors/impellers
  • Blisks
  • Housings/Volutes
  • Bladed stators/guide vanes (IGVs)
  • Diffusers
  • Shrouds

Tolerances

  • Dimensional to +/- 0.0001”
  • Surface finishes to 8 µ in Ra

Trust the Experts in Turbomachinery

For over 60 years, we have helped leading global OEMs to improve the performance and manufacturability of their turbomachines.

This is a video of Concepts NREC's optional 3+2 Roughing Module that enables roughing out of impellers using 3-axis algorithms, keeping a constant tool vector. This strategy optimizes the toolpath to provide constant cutting load, making it suitable for high speed machining. This is extremely helpful for large (>0.5 m) diameter impellers and/or hard materials where roughing using the 5-axis strategies is less efficient.

Below is a video of Concepts NREC's optional 3+2 Roughing Module that enables roughing out of impellers using 3-axis algorithms, keeping a constant tool vector. This strategy optimizes the toolpath to provide constant cutting load, making it suitable for high speed machining. This is extremely helpful for large (>0.5 m) diameter impellers and/or hard materials where roughing using the 5-axis strategies is less efficient

Below is a video of Concepts NREC's optional 3+2 Roughing Module that enables roughing out of impellers using 3-axis algorithms, keeping a constant tool vector. This strategy optimizes the toolpath to provide constant cutting load, making it suitable for high speed machining. This is extremely helpful for large (>0.5 m) diameter impellers and/or hard materials where roughing using the 5-axis strategies is less efficient.

Below is a video of Concepts NREC's optional 3+2 Roughing Module that enables roughing out of impellers using 3-axis algorithms, keeping a constant tool vector. This strategy optimizes the toolpath to provide constant cutting load, making it suitable for high speed machining. This is extremely helpful for large (>0.5 m) diameter impellers and/or hard materials where roughing using the 5-axis strategies is less efficient.
