Preliminary Sizing of Supersonic Turbines with Partial Admission for Best Performance Using AXIAL™

By Oleg Dubitsky
Apr 27, 2018


Share
  • Facebook
  • Twitter
  • LinkedIn

Many energy recovery, drive cycles (Organic and Steam Rankine cycles) and rocket propulsion cycles require the use of a turbine that operates at low volumetric flow and high-pressure ratio. Additional requirements include low cost, reduced weight, and reduced axial length (for robust rotor dynamics).



These conditions usually require a class of turbomachinery known as an impulse turbine. Impulse turbines are characterized by small net pressure and velocity changes at the inlet and outlet of the rotor. The concept of these designs is that the nozzle operates at a high-pressure ratio to deliver high volumetric flow that permits increased blade heights and requires low reaction of the blade rows downstream of the nozzle.

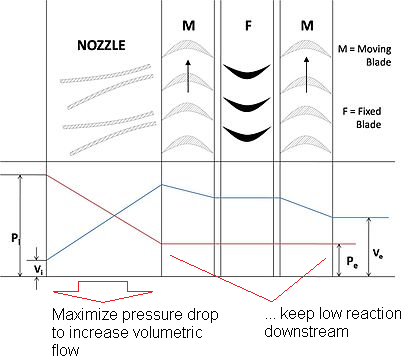

Impulse Turbine Example



If the blade heights of the various impulse turbines are still too low to deliver acceptable efficiency levels, or be viable for manufacturing, a partial admission is the next step in the consideration of the turbine design. Partial admission allows active flow only in a portion of the circumferential arc, providing the possibility to “exchange” a reduction in the admission arc for an increase in blade height.



The drawback of using a partial admission is the inactive flow sectors are subject to various additional losses: fill-in, empty-out, unsteadiness in the active jet domains, ventilation/recirculation (or “pumping”), and leakages in active and passive arc domains. In preliminary design tools, these losses are usually modeled via semi-empirical loss correlations.

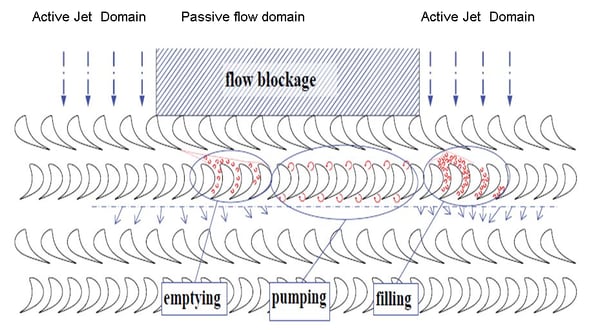

Impulse Turbine Partial Admission Example



Low reaction stages are rather tolerant of variable admission geometries. This is because the changing admission arc of the nozzle blockage varies the active jet region(s) in the downstream blade rows, without significantly changing the operating conditions of the blades in active jet domains. This minimizes the impact on aero performance, while enabling a wide range of power control in the stage.  Variable admission is usually achieved by controlling the flow through separate groups of nozzles in multiple arcs using valves.

Impulse Turbine Nozzle Example



In the case of reduced stage count, high pressure ratio geometry must be designed to support efficient supersonic operation, requiring the means to set appropriate convergent-divergent nozzle geometry with consideration of losses (non-isotropic flow).



To execute preliminary design of such turbines, AXIAL™ is equipped with a reduced order throughflow solver, which reports a condition of so-called fully expanded supersonic flow for each bladed passage (convergent or convergent-divergent). The design target for a supersonic nozzle is to find throat/exit area ratio of the passage that delivers minimum loss for the intended velocity triangles of the designed stage.



Automated optimization helps to solve the problem -  finding the best preliminary design of supersonic turbine as a balance between partial admission and supersonic effects. Additional ,  constraints/rules for aerodynamic design (allowed loadings, diffusion, reactions), structural design (blade and disk stresses) and manufacturability (thicknesses, blade separation distances, blade heights, blade angles) are also factored in.



To demonstrate the process, let’s consider example specifications for a supersonic turbine stage:



Media

Air

Mass flow

0.08 kg/sec

Inlet pressure P0

700 kPa

Inlet temperature T0

 200°C

PRts

7

Consider optimum single stage turbine   with optimized rotation speed, sizing, partial admission, convergent - divergent nozzle geometry reaction level, subject of manufacturing constraints:



Minimum allowed blade height

4 mm

Minimum allowed blade separation

1.5 mm

Tip clearance in rotor (labyrinth seal)

0.5 mm

Consider constant blade profiles hub to tip for nozzle and rotor.



Solutions in AXIAL™ are set in redesign mode (geometry control via inverse design options) to allow inputs for tip radius, nozzle inlet blade height, exit blade angles, set rules for cylindrical flow path in nozzle, and constant tip radius rotor geometry. Hub contour in the rotor is allowed to be conical with flare angle not exceeding common design practice constraints. Annular areas (and flow path dimensions) are calculated, based on the pressure fields, set by exit pressure and reaction.



Figures 1 and 2 show optimization problem settings in TurboOPT II for input parameters, and output parameters with constraints and objectives.

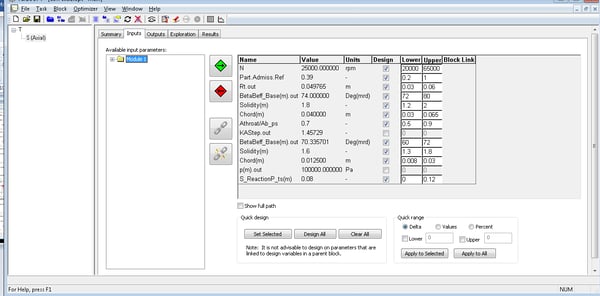

Input parameters for optimization study of the turbine stage

Figure 1. Input parameters for optimization study of the turbine stage

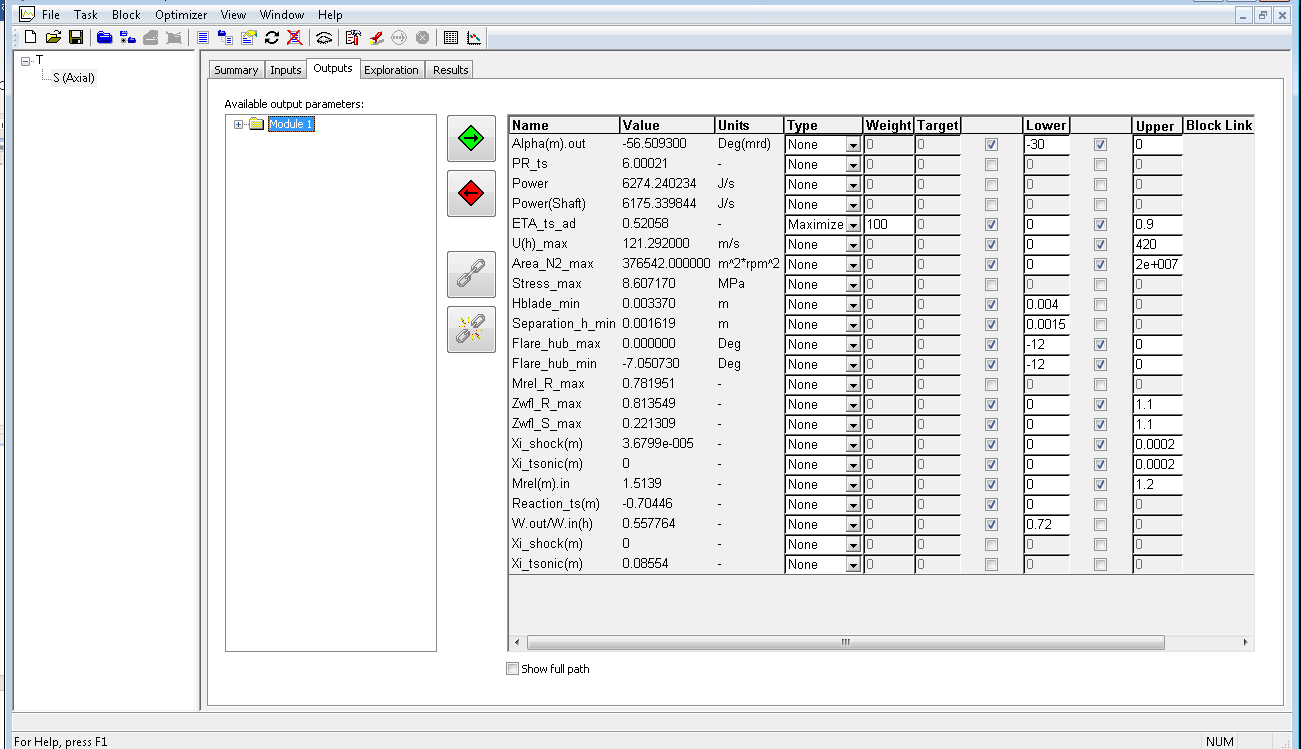

Output parameters with constraints and objectives for optimization study of the turbine stage



Figure 2. Output parameters with constraints and objectives for optimization study of the turbine stage


The history of optimization using the internal optimizer in TurboOPTII™ is shown in Figure 3, and the final result and optimized geometry is shown in Figures 4 and 5. The reported admission level is ~ 0.275, throat to exit area ratio ~ 0.733 for nozzle Mach number at exit ~ 1.7. Radial sizing and rotation speed of the stage are adjusted for best performance.




Conditions to keep low supersonic and transonic losses (Xi_shock, Xi_tsonic in the output set) are applied to guarantee that nozzle throat/exit area ratio (Athroat/Ab_ps in the input set) is hovering in the vicinity of fully expanded supersonic flow condition during optimization.

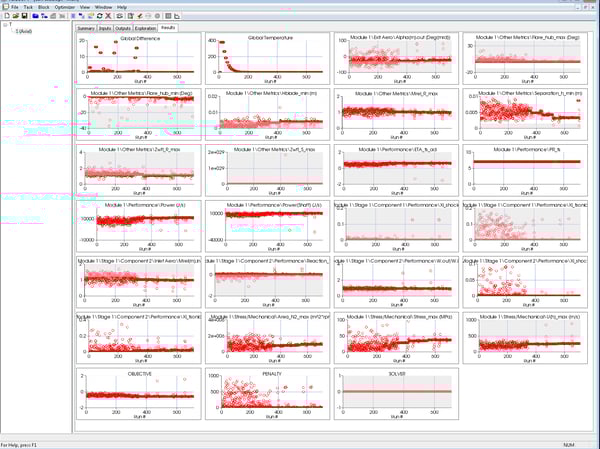

TurboOPT II optimization history

Figure 3. TurboOPT II optimization history



TurboOptll Optimization results - Impulse Turbine-1

Figure 4. Optimization results



In the right upper plot in Figure 5, for Mach number at exit of the nozzle, one may observe that the value (blue line) coincides with the Mach number for fully expanded supersonic flow (green line), which is an indication that the throat/exit area ratio for convergent-divergent nozzle is set correctly.



Nozzle blade height comes at the minimal allowed limit (adopted manufacturing requirement) that is likely to penalize performance of the optimized geometry.



The exit swirl angle (Alpha(m).out) is negative and deviates from axial direction (zero swirl exit is desirable for better total-to-static efficiency), which is a compromise between increasing exhaust energy loss (due to exit swirl) and reduction in ventilation loss, observed with reduction in radial size of the stage. Conventional design rules would drive the designer to pursue a minimized exit swirl target.

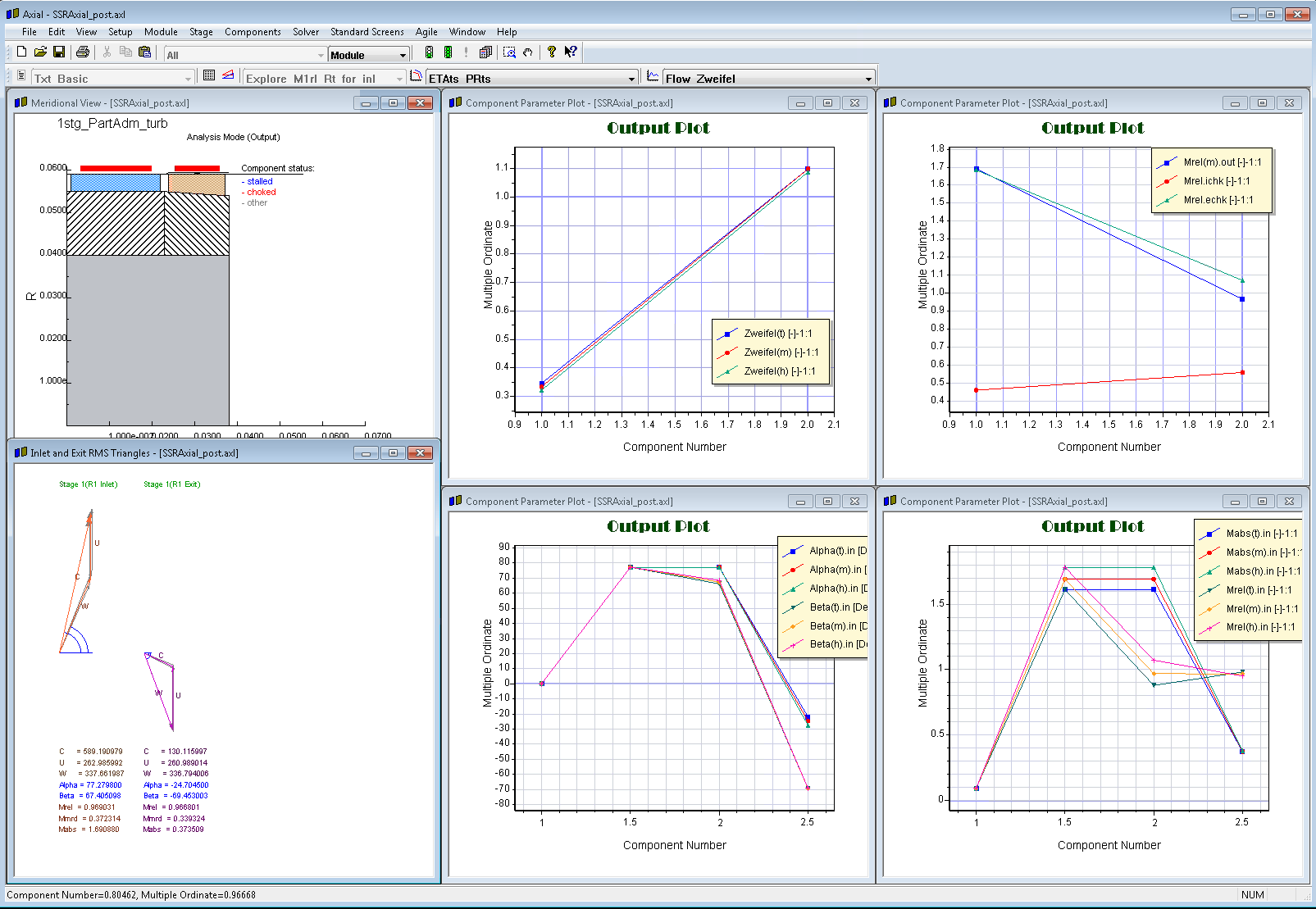

Optimized geometry of the supersonic turbine with partial admission

Figure 5. Optimized geometry of the supersonic turbine with partial admission

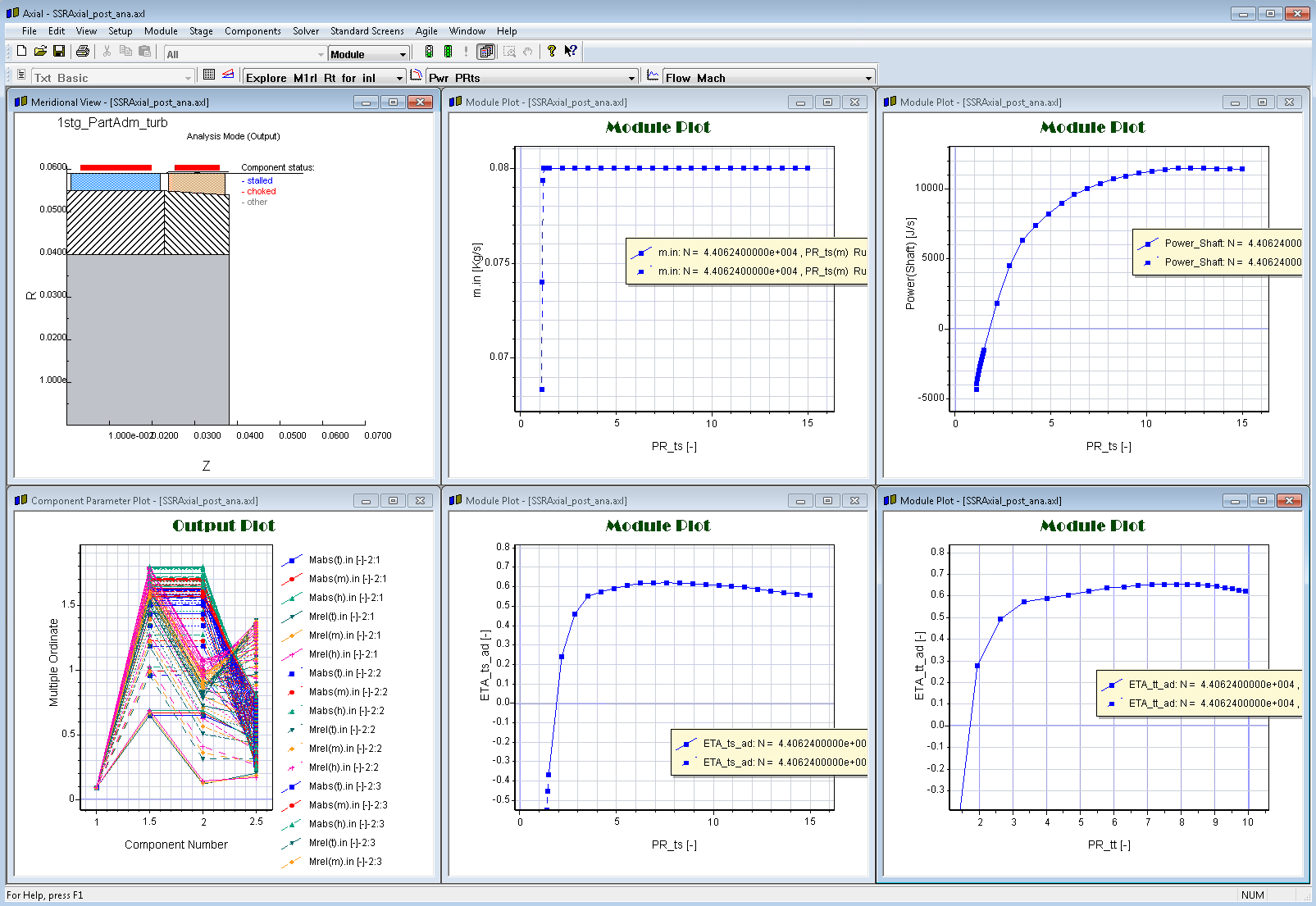

The resulting geometry of the supersonic stage can be studied for off-design performance. An example of single-speed line run with total-to-static pressure ratio range 1.1 - 14.0 is shown in Figure 6.

Example of Performance map at Constatnt Speed for Impulse Turbine

Figure 6. An example of performance map at constant speed, PRts = 1.1 to 14

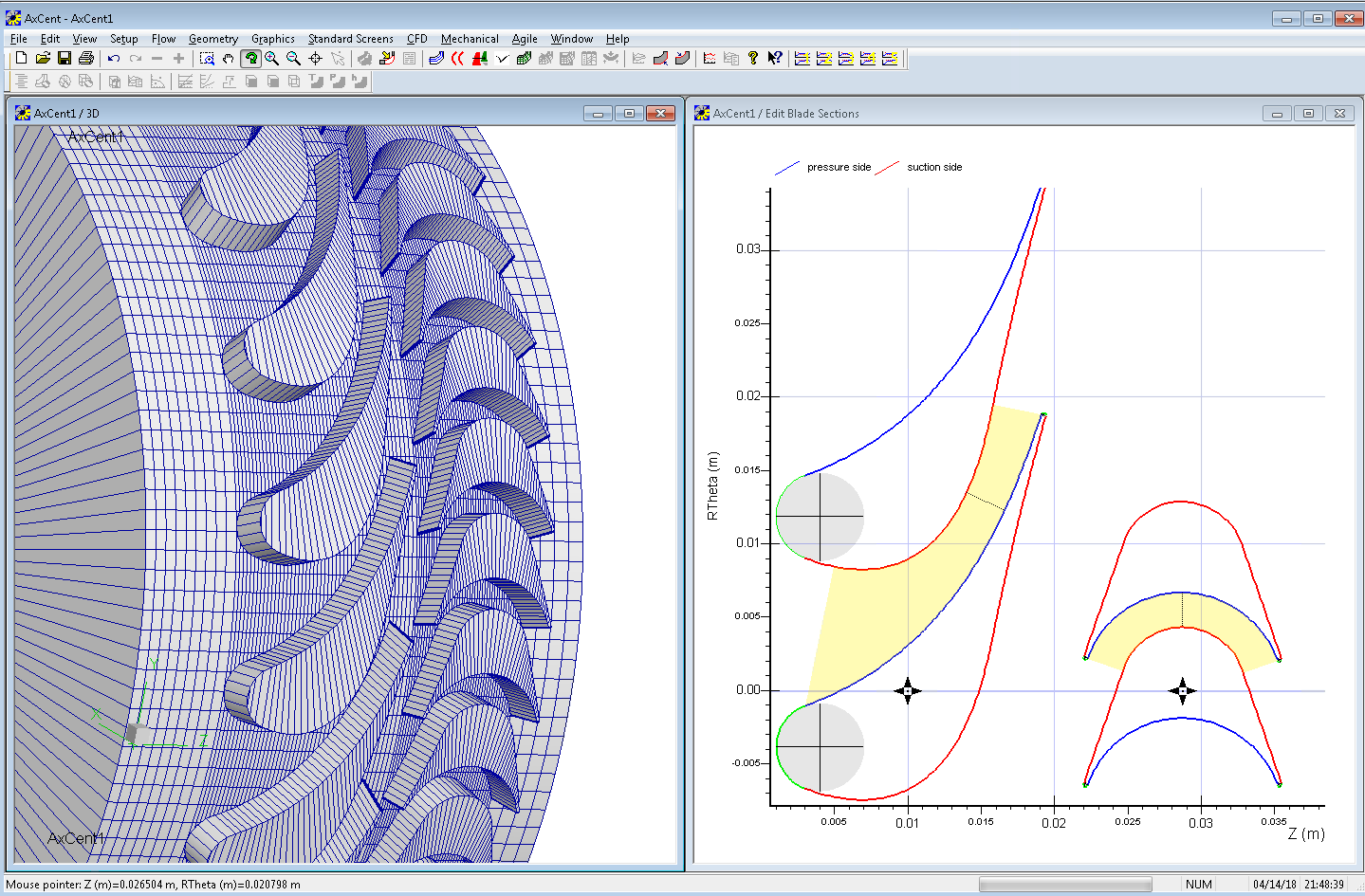

A first pass 3D geometry of the stage optimized in AXIAL™ is visualized in AxCent©.

3D Geometry of Impulse Turbine in AxCent



The obtained 3D geometry is ready for further aerodynamic profiling, using 2D and 3D CFD solvers using manual or automated optimization.



The impulse turbine with partial admission is just one of many different classes of turbomachinery. The brief outline of the design process given here for this particular class of machine shows the flexibility and versatility of the Agile Engineering Design System in designing various classes of turbomachinery.



Contact us to learn more.
